| Product Features
1. Widely use for various tiles (S-Type tile, Scales tile, slating, etc.) and for both crystalline and thin film modules.
2. Testing strictly according to design standard to ensure high stability.
3. Simple installation exercise with high efficiency in short working period.
4. Anodized aluminum & stainless steel material with high durability
|
|

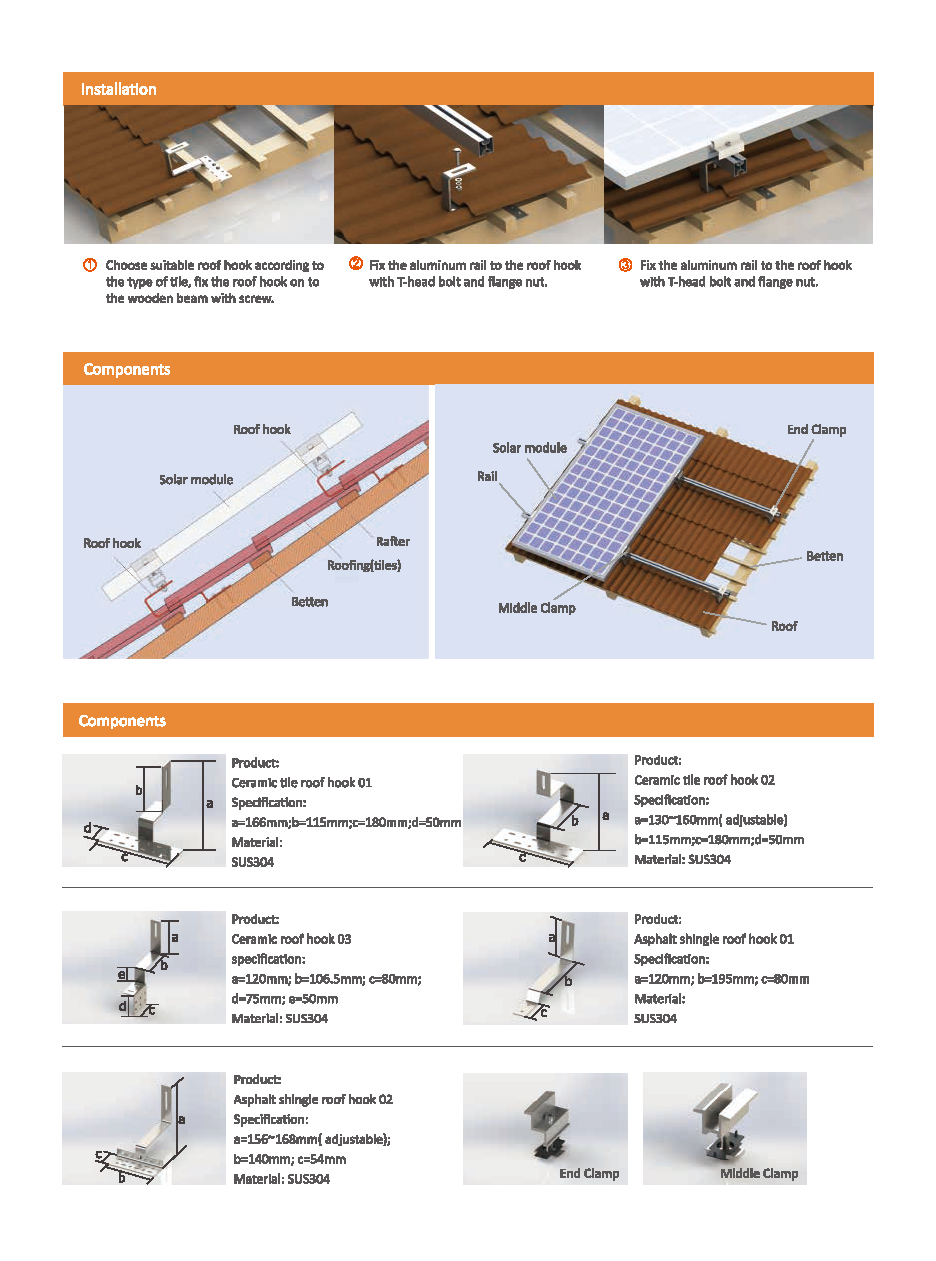

Optimized design according to local diverse roofing structure and tile shape. The system uses roof hook to be fixed on the roof and mount the PV module by rail &clamps.
 |
Technical Data
|
Installation site |
Tile roof |
Material |
Anodized aluminum |
|
Slop of roof |
＜30° |
Small pieces |
Anodized aluminum/Stainless steel |
|
Windproof |
60m/s |
Windproof |
60m/s |
|
Module arrangement |
Portrait or landscape |
Snow load |
1.4KN/m2 |
|
Module specification |
Frame/Frameless |
Design life span |
25 years |
|
Crystalline/Tthin film |
|
Module size |
On requirement |
International standard |
ISO9001、CE |
|
|
|
|
