| 430W-460W 182mm 60 Half Cut |
| Soliswatt Mono Half-Cell
60X10-430~460W Solar Panels
Mono 430/435/440/445/450/455/460w |
|
-
Item NO.:
SP5-60H-430-460M
-
Solar Cell :
PERC 182mm
-
Number Of Cells :
120(6*20)
-
Power Range :
430w-460w
-
Size :
1910*1134*35mm
-
Certificate :
TUV, UL, CEC, CE
-
Lead Time :
10 Days
-
Payment :
T/T, L/C, Paypal, Western Union
-
Warranty :
25 Years
Product Description
Electrical Characteristics
|
Module Type |
SP5-60H-430-460M |
|
Maximum Power (Pmax) |
430W |
435W |
440W |
445W |
450W |
455W |
460W |
|
Open-circuit Voltage (Voc) |
40.8W |
41.0W |
41.2W |
41.4W |
41.6W |
41.8W |
42.0W |
|
Maximum Power Voltage (Vmp) |
34.1V |
34.3V |
34.5V |
34.8V |
35.0V |
35.2V |
35.5V |
|
Short-circuit Current (Isc) |
13.42V |
13.48V |
13.54V |
13.60V |
13.66V |
13.72V |
13.78V |
|
Maximum Power Current (Imp) |
12.62A |
12.68A |
12.74A |
12.80A |
12.86A |
12.91A |
12.97A |
|
Module Efficiency(%) |
19.85% |
20.08% |
20.31% |
20.55% |
20.78% |
21.01% |
21.24% |
|
Power Tolerance |
0～+5W |
|
Temperature Coefficient of Isc |
0.05%/℃ |
|
Temperature Coefficient of Voc |
—0.31%/℃ |
|
Temperature Coefficient of Pmax |
—0.35%/℃ |
|
Standard Test Environment |
Irradiance 1000W/m², Cell Temperature 25℃，Spectrum AM 1.5 |

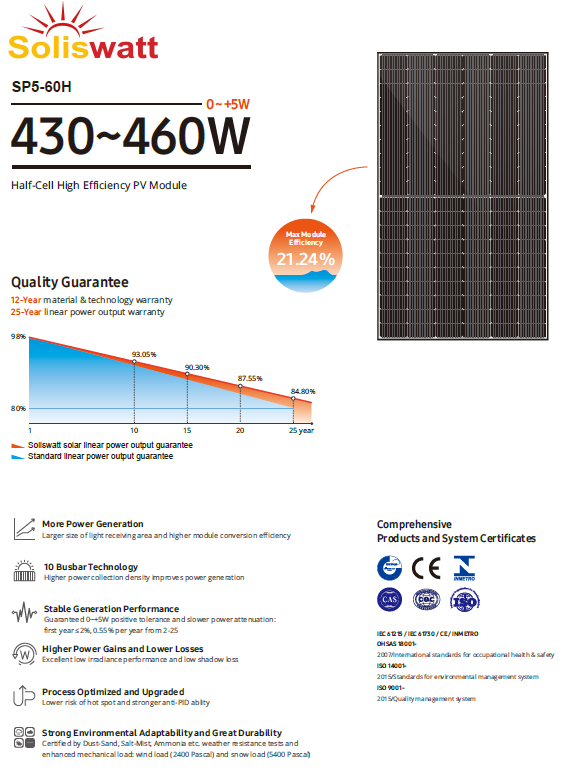

Features & Benefits
First-class solar panel warranty Reliable quality
12-Year material & technology warranty
-
25-Year linear power output warranty
-
Soliswatt solar linear power output guarantee
-
Standard linear power output guarantee
-
Max Module Efficiency21.24%.
-
-
Product Characteristics
-
More Power Generation Larger size of light receiving area and higher module conversion efficiency
-
-
10 Busbar Technology Higher power collection density improves power generation
-
-
Stable Generation Performance Guaranteed 0~+5W positive tolerance and slower power attenuation:
first year 2%, 0.55% per year from 2-25
-
-
Higher Power Gains and Lower Losses Excellent low irradiance performance and low shadow loss
-
-
Process Optimized and Upgraded Lower risk of hot spot and stronger anti-PID ablity
-
-
Strong Environmental Adaptability and Great Durability Certified by Dust-Sand, Salt-Mist, Ammonia etc. weather resistance tests and
enhanced mechanical load: wind load (2400 Pascal) and snow load (5400 Pascal)
-
Packing&Delivery
31pcs/pallet, 744pcs/40HQ
|
|
|
