| 520W-550W 182mm 72 Half Cut |
| Soliswatt-72X10-520-550W
Mono PERC Half-Cell Solar Panels
520/525/530/535/540/545/550w Half-Cell High Efficiency PV Module |
|
144 cells half cell perc solar panel 520~550W Soliswatt Mono Half-Cut cell 182mm wafer with A Grade for on-grid & off-grid & hybrid residential & industrial use for PV Power System
-
Item NO.:
SP5-72H-520-550M
-
Solar Cell :
PERC 182mm
-
Number Of Cells :
144(6*24)
-
Power Range :
520w-550w
-

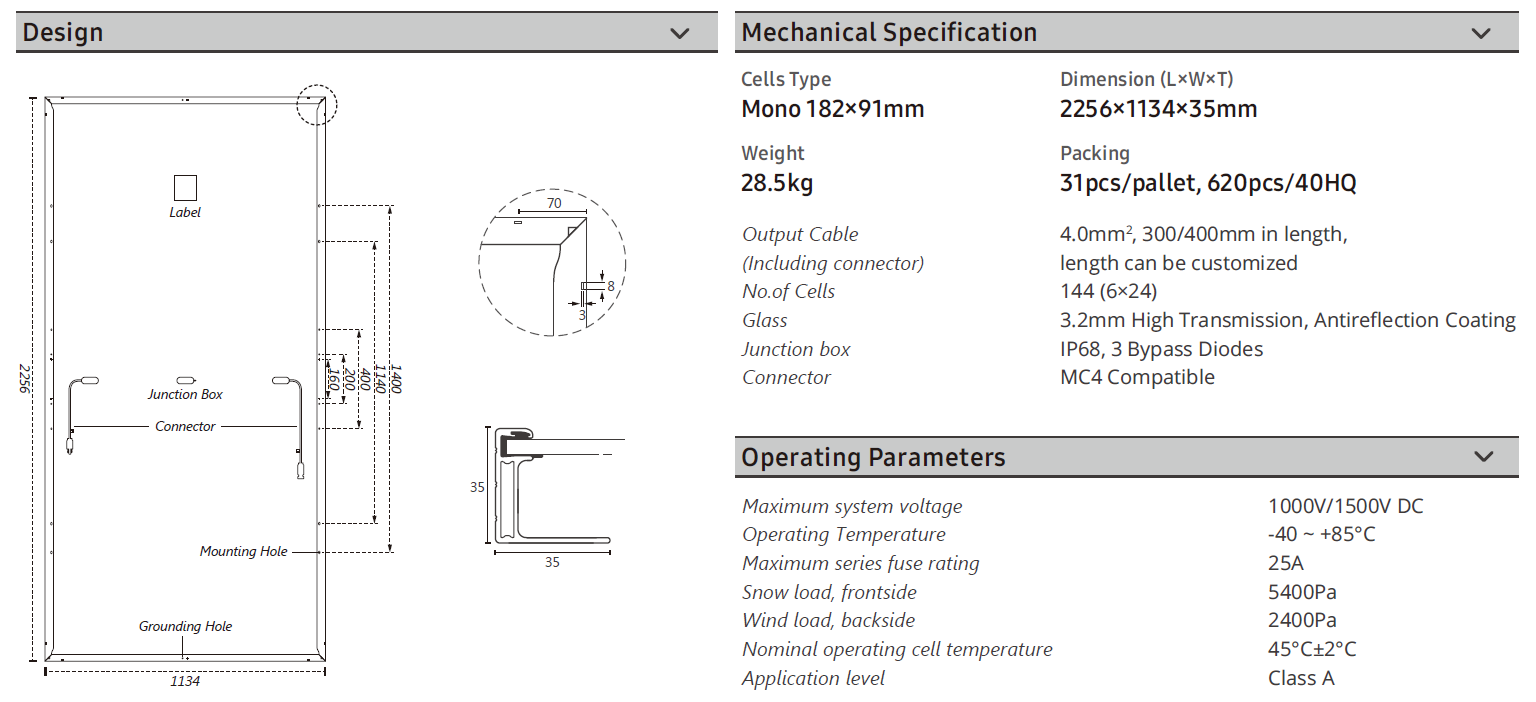

Size :
2256*1133*35mm
-
Certificate :
TUV, UL, CEC, CE
-
Lead Time :
10 Days
-
Payment :
T/T, L/C, Paypal, Western Union
-
Warranty :
25 Years
Product Description
Electrical Characteristics
|
Module Type |
DHM-72X10-520-550W |
|
Maximum Power (Pmax) |
520W |
525W |
530W |
535W |
540W |
545W |
550W |
|
Open-circuit Voltage (Voc) |
49.0W |
49.2W |
49.4W |
49.6W |
49.8W |
50W |
50.2W |
|
Maximum Power Voltage (Vmp) |
41.2V |
41.4V |
41.6V |
41.8V |
42V |
42.2V |
42.4V |
|
Short-circuit Current (Isc) |
13.42V |
13.48V |
13.54V |
13.6V |
13.66V |
13.72V |
13.78V |
|
Maximum Power Current (Imp) |
12.62A |
12.68A |
12.74A |
12.8A |
12.86A |
12.91A |
12.97A |
|
Module Efficiency(%) |
20.33% |
20.52% |
20.72% |
20.91% |
21.11% |
21.30% |
21.50% |
|
Power Tolerance |
0～+5W |
|
Temperature Coefficient of Isc |
0.05%/℃ |
|
Temperature Coefficient of Voc |
—0.31%/℃ |
|
Temperature Coefficient of Pmax |
—0.35%/℃ |
|
Standard Test Environment |
Irradiance 1000W/m², Cell Temperature 25℃，Spectrum AM 1.5 |

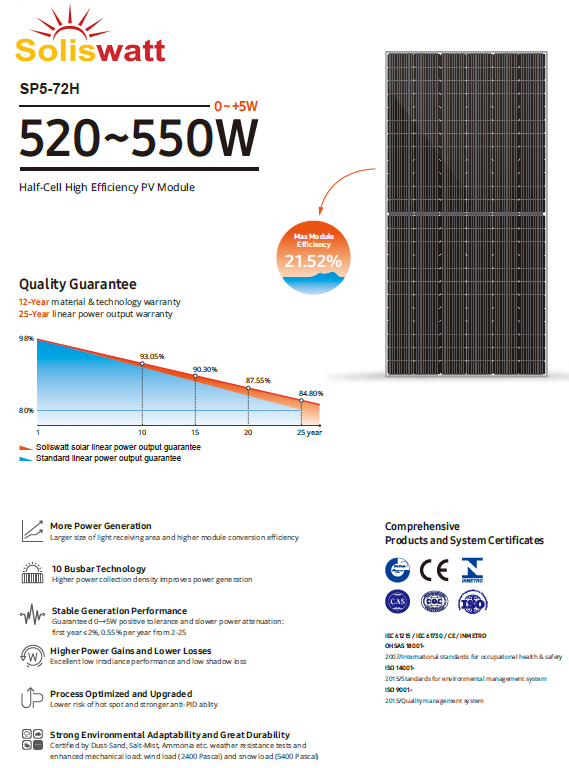

Features & Benefits
First-class solar panel warranty Reliable quality
12-Year material & technology warranty
-
25-Year linear power output warranty
-
Soliswatt solar linear power output guarantee
-
Standard linear power output guarantee
-
Max Module Efficiency21.27%.
-
-

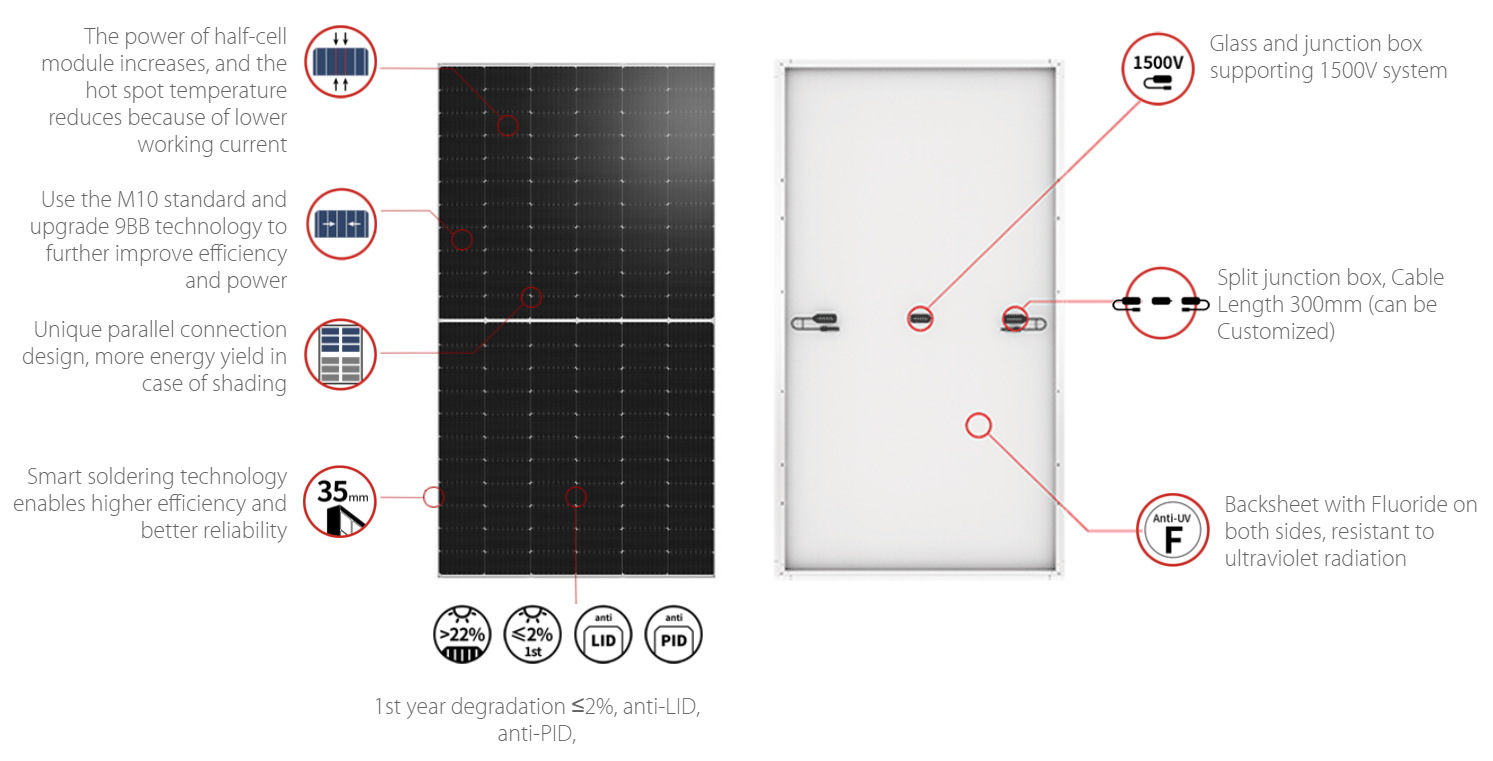

Product Characteristics
-
More Power Generation Larger size of light receiving area and higher module conversion efficiency
-
-
10 Busbar Technology Higher power collection density improves power generation
-
-
Stable Generation Performance Guaranteed 0~+5W positive tolerance and slower power attenuation:
first year 2%, 0.55% per year from 2-25
-
-
Higher Power Gains and Lower Losses Excellent low irradiance performance and low shadow loss
-
-
Process Optimized and Upgraded Lower risk of hot spot and stronger anti-PID ablity
-
-
Strong Environmental Adaptability and Great Durability Certified by Dust-Sand, Salt-Mist, Ammonia etc. weather resistance tests and
enhanced mechanical load: wind load (2400 Pascal) and snow load (5400 Pascal)
-
Packing&Delivery
31pcs/pallet, 620pcs/40HQ
|
|
|
|
