Off Grid | 1200VA-5000VA | Single Phase. Victron Phoenix series is off grid solar inverter specially designed for use with batteries energy storage in the home PV Power System
-
Item NO.:
Phoenix Inverter 1200 to 5000VA
-
Brand :
Victron
-
Power :
1200VA-5000VA
-
AC Voltage :
230 VAC ± 2% Frequency: 50 Hz ± 0,1% (1)
-
Application :
Off Grid/Battery Energy Storage Residential Solar System
-
Warranty :
5 Years
Product Description
Off Grid / Stand-Alone Solar Inverter System

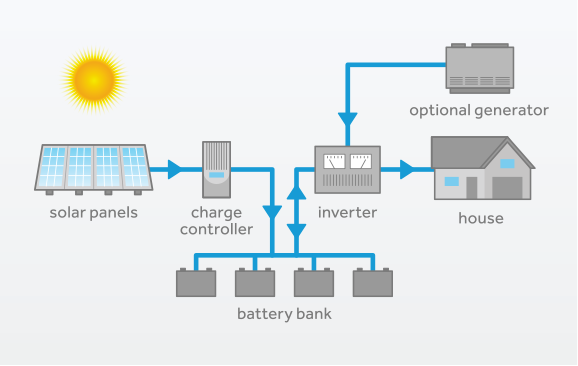

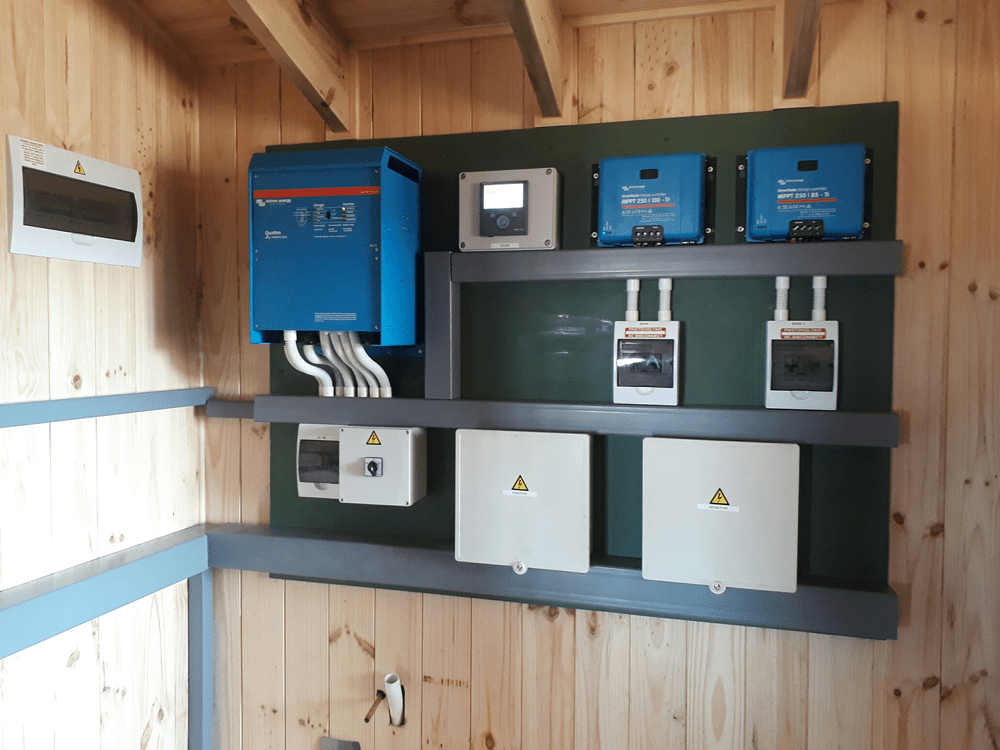

An off-grid solar system is not connected to the electricity grid and requires battery storage. Off-grid solar systems must be designed correctly in order to generate enough power throughout the year and have the necessary battery capacity to meet the installed locations electrical energy requirements or demand.
A backup generator or alternative back up power source may be necessary to supplement your electrical demand and recharge the batteries during times when the batteries are inadequately charged due to very bad weather patches or other unforeseen circumstances. We recommend that the size of the backup power source should be adequate to supply energy to your house and charge your batteries at the same time.
Features
The Phoenix Inverter Compact is a pure sine wave inverter with a high efficiency. It is developed for professional duty and suitable for the wide range of applications.
The Phoenix Inverters Compact is available from 1200VA up to 2000VA in 12V or 24V.
Models:12 / 24 Volt
Technical Parameters
|
Inwerter Phoenix |
C12/1200
C24/1200
C48/1200 |
C12/1600
C24/1600
C48/1600 |
C12/2000
C24/2000 |
12/3000
24/3000
48/3000 |
24/5000
48/5000 |
|
Parallel and 3-phase operation |
Yes |
|
INWERTER |
|
Input voltage range [V DC] |
9,5 – 17V 19 – 33V 38 – 66V |
|
Output |
230 VAC ±2% 50 Hz ± 0,1% (1) |
|
Cont. output power at 250C [VA] |
1200 |
1600 |
2000 |
3000 |
5000 |
|
Cont. output power at 250C [W] |
1000 |
1300 |
1600 |
2500 |
4500 |
|
Cont. output power at 400C [W] |
900 |
1200 |
1450 |
2200 |
4000 |
|
Peak power [W] |
2400 |
3000 |
4000 |
6000 |
10000 |
|
Max. efficiency 12/24/48 V [%] |
92 / 94 |
92 / 94 |
92 / 92 |
93 / 94 / 95 |
94 / 95 |
|
Zero-load power 12/24/48 [W] |
8 / 10 |
8 / 10 |
9 / 11 |
15 / 15 / 16 |
25 / 25 |
|
Zero-load power in AES mode [W] |
5 / 8 |
5 / 8 |
7 / 9 |
10 / 10 / 12 |
20 / 20 |
|
Zero-load power in Search mode[W] |
2 / 3 |
2 / 3 |
3 / 4 |
4 / 5 / 5 |
5 / 6 |
|
General |
|
Programmable relay(3) |
Yes |
|
Protection (4) |
a – g |
|
VE.Bus communication port |
For parallel and three phase operation, remote monitoring and system integration |
|
Remote on-off |
YES |
|
Common Characteristics |
Operating temperature range: -40 to +50 ºC (fan assisted cooling)
Humidity (non condensing): max 95% |
|
Enclosure |
|
Common characteristics |
Material [&] Colour aluminium (blue RAL 5012)
Protection category: IP21 |
|
Battery-connection |
battery cables 1,5 meter included |
bolts M8 |
2+2 bolts M8 |
|
Connection 230V AC |
plug G-ST18i |
Spring-clamp |
Screw terminals |
|
Weight [kg] |
10 |
12 |
18 |
30 |
|
Dimensions [hxwhd in mm] |
375x214x110 |
520x255x125 |
362x258x218 |
444x328x240 |
|
Standards |
|
safety |
EN 60335-1 |
|
Emission immunity |
EN 55014-1 / EN 55014-2 |
-
Can be adjusted to 60Hz and to 240V
-
Non linear load, crest factor 3:1
-
) Programmable relay that can a.o. be set for
general alarm, DC undervoltage or genset
start/stop function.
AC rating: 230V/4A
DC rating: 4a up to 35VDC, 1A up to 60VDC
|
4) Protection key:
a) output short circuit
b) overload
c) battery voltage too high
d) battery voltage too low
e) temperature too high
f) 230 V AC on inverter output
g) input voltage ripple too high |
Leading Features
Victron Phoenix Inverter 5000VA 24V
SinusMax - Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.
Extra start-up power
A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.
Virtually unlimited power thanks to parallel and 3-phase operation capability
Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.
To transfer the load to another AC source: the automatic transfer switch
If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds).
Computer interface
All models have a RS-485 port. All you need to connect to your PC is our MK2 interface (see under accessories). This interface takes care of galvanic isolation between the inverter and the computer, and converts from RS-485 to RS-232. A RS-232 to USB conversion cable is also available. Together with our VEConfigure software, which can be downloaded free of charge from our website, all parameters of the inverters can be customised. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control network of Victron Energy, or to other computerised monitoring and control systems.
New applications of high power inverters
The possibilities of paralleled high power inverters are truly amazing. For ideas, examples and battery capacity calculations please refer to our book “Energy Unlimited”
|
